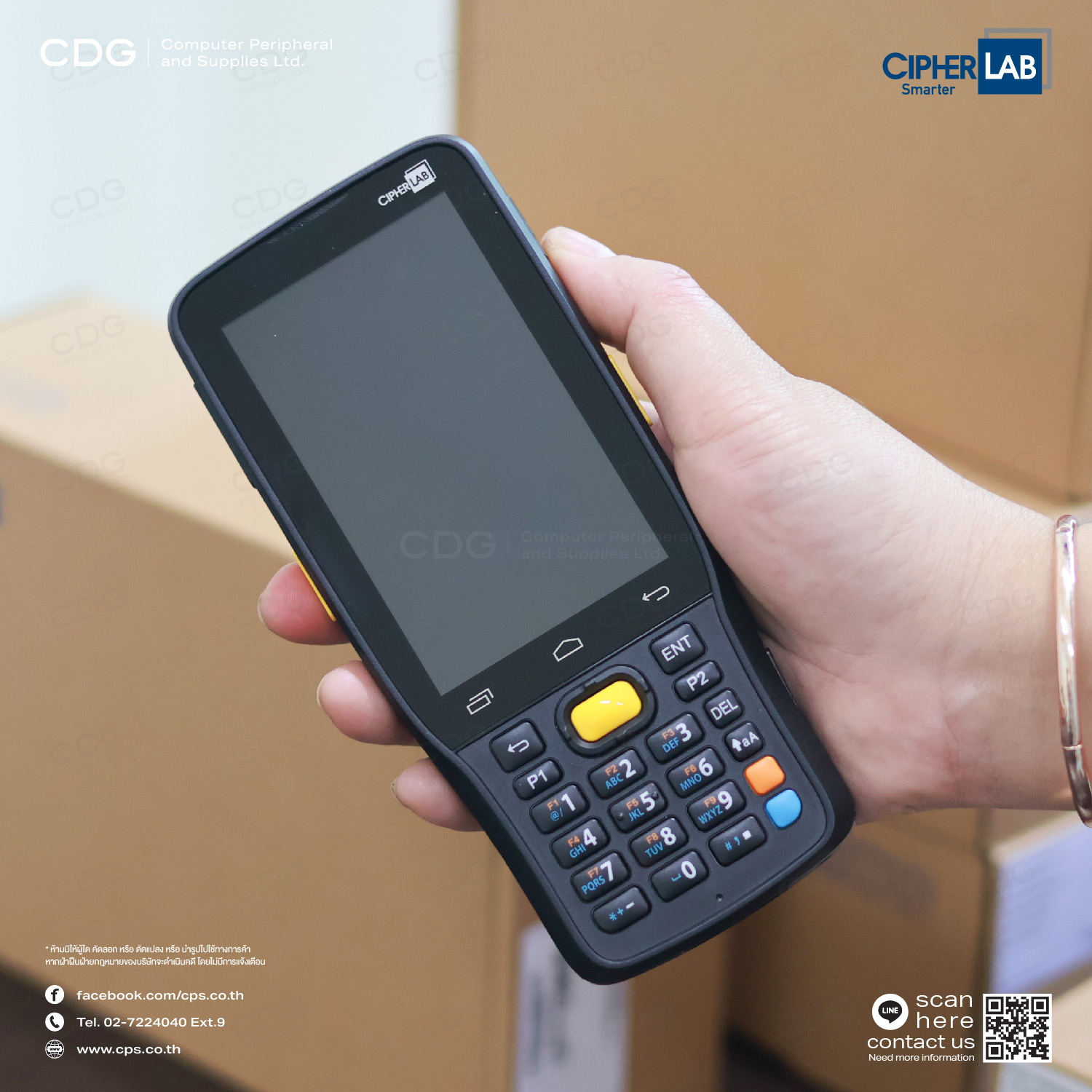

Cipherlab RK25 Series Rugged Mobile Computer
Attribute:
Cipherlab RK25 Rugged Mobile Computer, Android GMS, Display 4 inch Multi Touch, Reads 1D/2D Barcodes, NFC Cards, RFID Tags.
Categories : AUTO-ID PRODUCTS , Mobile Computer ,
Share
Cipherlab RK25 Series
Barcode Scanner 1D/2D portable handheld barcode scanner, reading distance over 4 meters, reading rate at 700 tags/second, 4-inch screen, comes with Android GMS operating system, comes with Quad-Core 1.4 GHz CPU, resistant to drops from a height of up to 0.5 meters, long-lasting use with a 4000 mAh battery, suitable for use in tracking goods in warehouses, transportation, retail stores, etc.
Special Features :
- Operating system Android 7.0 GMS (upgradable to Android 9.0 with GMS)
- Screen size 4 inches with Multi Touch control panel
- Barcode reader 1D/2D Barcodes, NFC Cards, RFID Tags.
- Reading distance more than 4 meters, reading rate at 700 tags/second
- Quad-core 1.4 GHz Cortex A53
- Memory 2GB RAM / 16GB Flash
- Battery Li-Polymer Battery 3.8V 4000 mAh
- Supports RFID Android Software Development Kit, EZConfig, EZEdit
- Standard IP65 or dropped from a height of 0.5 meters 300 times
Groups suitable for use
- Retail
- Light Warehousing
- Transportation and Logistics
- Field Mobility
Datasheet : Cipherlab RK25 Series Rugged Mobile Computer
Specifications
| Item | RK25 |
| OS | Android 7.0 with GMS (Upgradeable to Android 9.0 with GMS) / Android 9.0 with GMS |
| CPU | Quad-core 1.4 GHz Cortex A53 |
| Memory | 2GB RAM / 16GB Flash |
| Expansion | Micro SD card slot with SDHC support (up to 32GB) |
| SIM / SAM | 1 SIM slot and 1 optional SIM/SAM slot |
| Operating power | Replaceable and rechargeable 3.8V, 4000 mAh Li-Polymer battery |
| Working hours | Minimum 8 hours (2D imager) |
| Wireless communication | WWAN: GSM: Quad Band (850/900/1800/1900Mhz) TD-SCDMA: Band34, Band39 WCDMA: Band1, Band2, Band5, Band8, TDD-LTE: Band38, Band39, Band40, Band41 FDD-LTE: Band1,Band2, Band3, Band5, Band7, Band8, Band20 WLAN: IEEE 802.11 a/b/g/n/ac/e/d/h/i/r/k/v/w dual band WPAN: BluetoothR Class II, V4.0 BLE, V2.1 with Enhanced Data Rate (EDR) GPS: GPS, Galileo, GLONASS, BeiDou, AGPS |
| Barcode scanning | Linear imager/ 2D imager/ Mid-Range 2D imager |
| RFID read / write | HF RFID 13.56 MHz frequency which supports ISO14443 TYPE A,B, and ISO15693 Support NFC (Peer-to-Peer, Card Reader, Card Emulation), optional for 28-key models |
| Camera | Autofocus 8 megapixels with LED flash |
| Display | 4'' WVGA 480 (W) x 800 (H) |
| Size | 168 x 73.8 x 26 mm |
| Weight | 292 g (Mid-Range 2D imager with battery) |
| Impact resistance | Standard: 1.5 m (5 ft.) multiple drops onto concrete With rubber boot: 1.8 m (6 ft.) MIL-STD-810G IP65 / 300 tumbles at 0.5 m |
For the United States, please download the brochure below.
| Item | RK25 UHF RFID Reader |
| Pairing | Electrical 8-pin connection |
| RFID Standard | EPC Class1 Gen2 V2 |
| Antenna | Circularly polarized |
| RFID performance | Fastest read rate: 700+ tag/sec Read range : 8+ m (26+ ft) |
| Frequency range | US: 902~928 MHz. EU: 865~868 MHz TW: 922~928MHz. JP: 916~920 MHz AU: 920-924MHz. NZ: 920-924 MHz |
| Battery | 3.6v, 3000mAh Li-ion battery |
| Size | Without RK25: 152.4 mm x 85.3 mm x 158.8 mm With RK25: 181.4 mm x 85.3 mm x 162.9 mm |
| Weight | Without RK25: 353.4 g With RK25: 632.7 g |
| Ruggedness | 1.2m drop (With RK25). IP54 |
| Software | RFID Android Software Development Kit, EZConfig, EZEdit |
