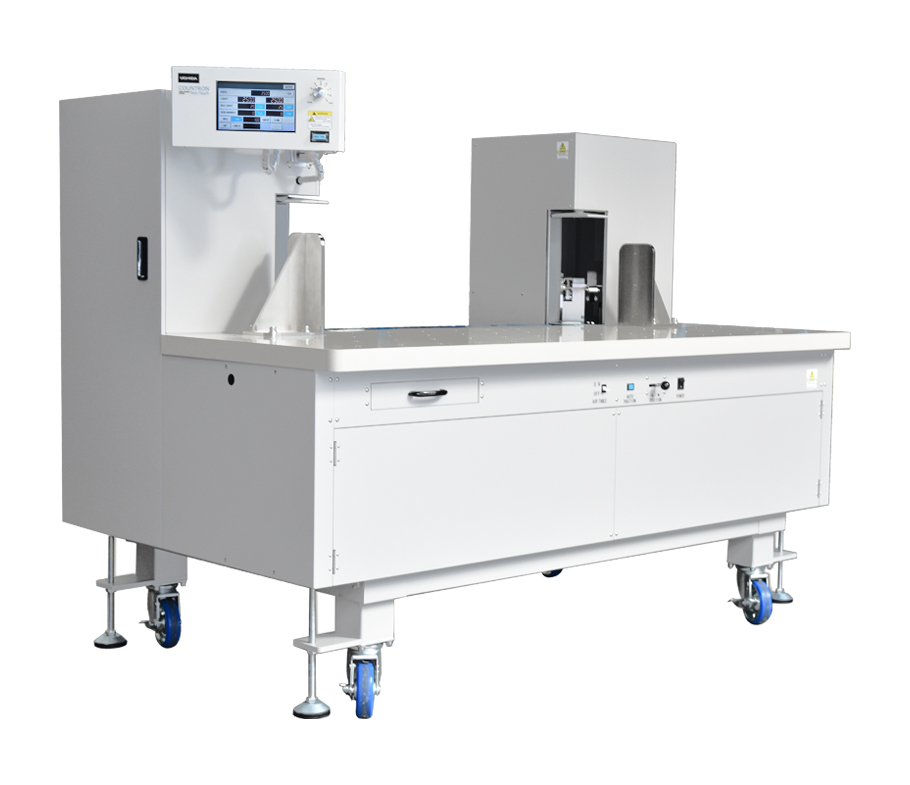

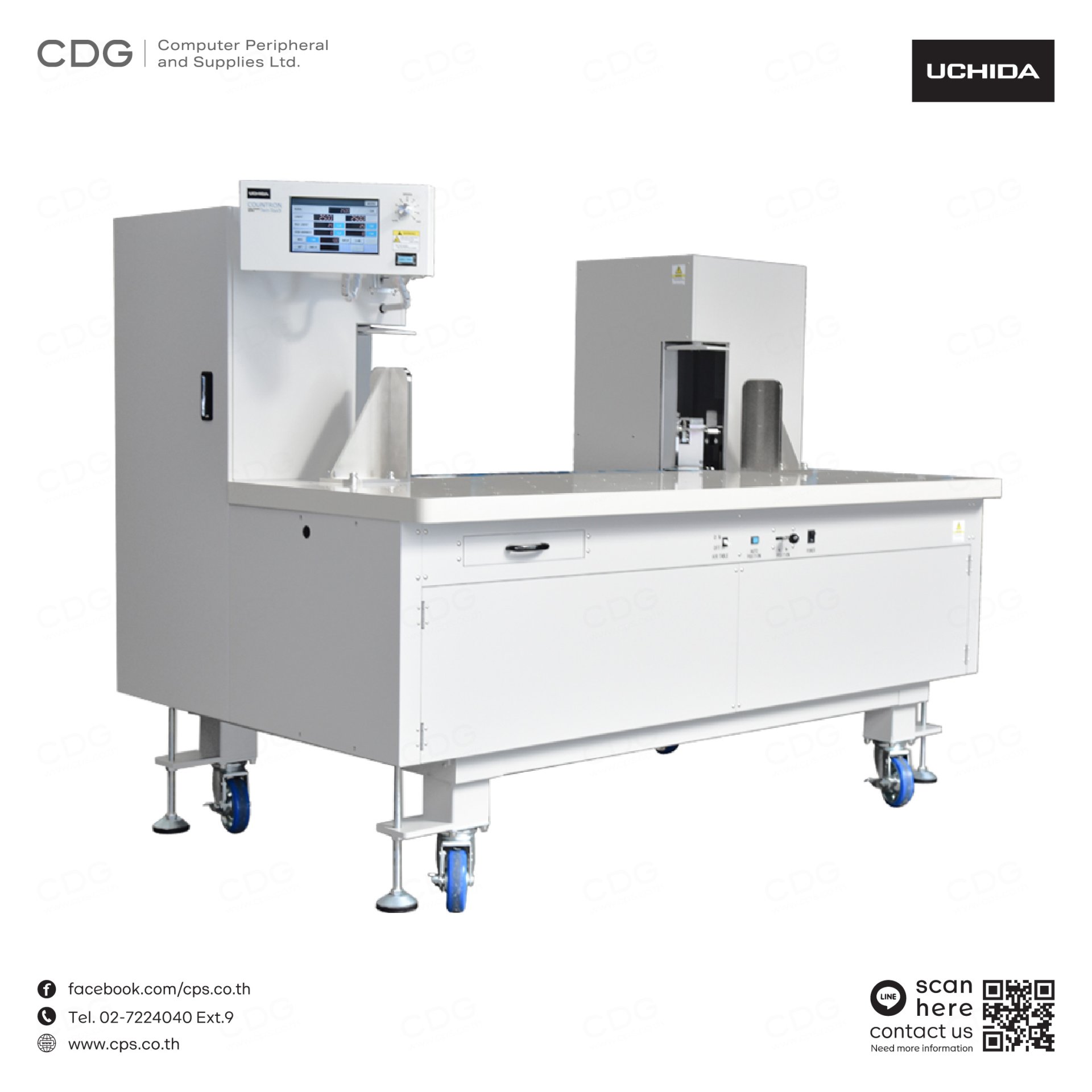

Counting Machine UCHIDA Countron Twin-Touch

Counting Machine UCHIDA Countron Twin-Touch

Uchida Countron Twin Touch is the professional double head paper couonting machine. Its accurate pin & blade counting mechanism, proven by thousands of users for several decades enables the operator to count a pile of sheet by just a press of a button. Twin head counting mode reduce labor time by counting 2 corners of a paper pile simultaneously. This is very helpful when counting security prints such as bank notes, cash vouchers etc. Both towers are capable to insert tab tapes between papers, every 2-1000 sheets or at designated numbers. This enables the Countron Twin Touch to batch the papers with checking the number.

• Increased counting speed. The same great accuracy
• Maximum counting speed 2,500 sheets/min
• Support paper size 22-256 grams
• Count 2 corners, check simultaneously
• Made in Japan

Specifications

• Machine type : Standalone, with double counting head
• Counting mechanism : Twin-blade with suction chip
• Counting speed : 0 to 2,500 sheets/min.
• Countable paper quality : 22 to 256 gsm


• Countable paper size
  • Single head use
    • (Fixed tower) 100x130mm to 1,200x800mm / 5.9"x4.5" to 47.2"x31.5"
    • (Movable tower) 150x200mm to 1,200x800mm / 5.9"x7.9" to 47.2"x31.5"


  • Double head use
    • 280x130mm to 1,200x800mm / 14.2"x4.5" to 47.2"x31.5"


• Stacking capacity : Up tp 300mm / 13.8"
• Tab tape insertion : Every 2 to 1,000 sheets
• Height of work table : 772mm or 860mm
• Power source : 110/120/220/230/240 VAC, 50/60Hz, single phase
• Power Consumption : 850W
• Dimensions : 1,970(W)x1,180(D)x1,440(H)mm / 77.5"(W)x 46.4"(D)x56.7"(H)
• Net weight : 500kgs/1,102lbs
• Options : RAM for random tabbing program memory / Air table

Datasheet : Counting Machine UCHIDA Countron Twin-Touch

Security Paper Counter Uchida Countron Twin Touch
