Tuskrobots AMR E-Series Factory Warehouse Robot
Attribute:
Pallet handling / transport robots in factories, warehouses and production lines can lift up to 1,500 kilograms and can run continuously for 6-8 hours.
Categories : OFFICE AUTOMATION ,
Share
Tuskrobots AMR E-Series Factory Warehouse Robot หุ่นยนต์ขนย้ายของภายในโรงงาน
คลังสินค้า และ ไลน์การผลิต

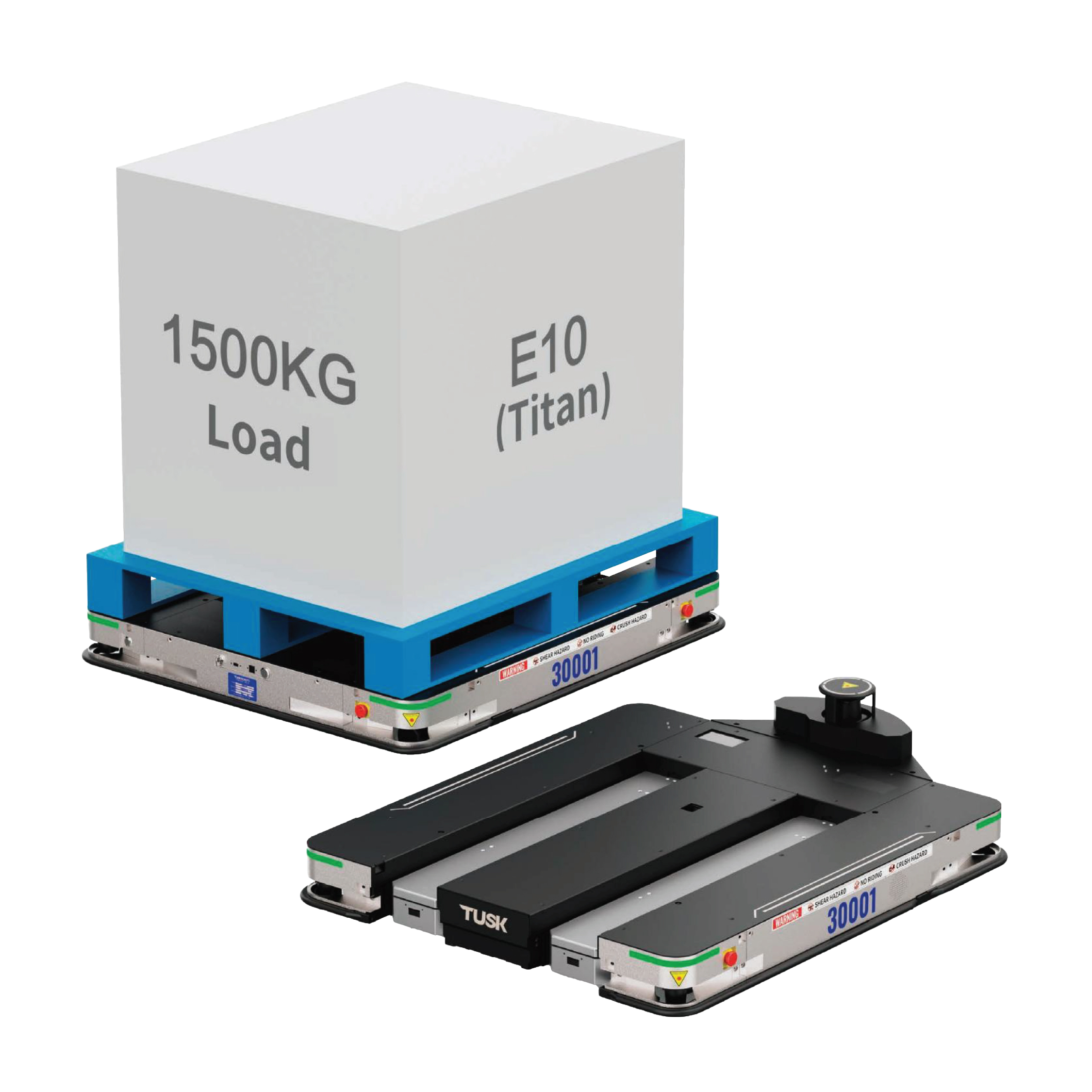

Tuskrobots AMR E-Series Factory Warehouse Robot
Autonomous Mobile Robot, a robot for transporting goods in factories, warehouses and production lines, which can save labor and increase employee efficiency by at least 30%, as well as increase employee safety.
AMR E-Series robots, a Pallet-Handling Lift-Up robot for lifting and transporting pallets in factories, can lift open pallets without the need for additional structures. It can be connected to various systems, such as MES, WMS, PMS, or ERP, to command the robot to move raw materials, parts or products to various points. The robot can lift a maximum weight of 1,500 kilograms. It takes 2 hours to charge the battery once and can run for 6-8 hours continuously. The maximum speed is 1.5 meters / hour. This robot model meets the needs of businesses in terms of increasing work efficiency and reducing production costs.
Features
- Moving things in factories, warehouses and production lines
- Can be connected to various systems such as MES, WMS, PMS, or ERP
- Command the robot to move raw materials, parts or products to various points
- Can lift up to 1,500 kilograms
- Charge the battery once, takes 2 hours, can run for 6-8 hours continuously
- Maximum speed can run 1.5 meters / hour
- Increase work efficiency and reduce production costs
Datasheet : Tuskrobots AMR E-Series Factory Warehouse Robot
รายละเอียดสินค้า
| Project | Specifications | E10 | E10-SLAM |
| Basic Parameters | Size(mm) | 1233x1102x170 | 1399x1102x170 (SLAM component can be elevated) |
| Rated Load (kg) | 1000 | ||
| Self-Weight (kg) | 310 | 320 | |
| Fork Height (mm) | 90(7mm downward floating height with loading) | ||
| Fork Stretch Out Max Limit (mm) | 1400 | ||
| Fork Max Lifting Height (mm) | ≤330 | ||
| Display Screen | 5 inches | ||
| Telecommunication Modes | Default WIFl version: Support dual-band 2.4G/5G, IEEE802.11b/g/n(-5G version support sG communication) | ||
| Safety Protection | Obstacle Avoidance Protection | Front laser sensors + Rear laser sensors,360° obstacle avoidance detection | |
| Detection Distance of Front Laser(m) | 0-3 | ||
| Mechanical Protection | Emergency stop button, Reset button, A protection strip around the whole vehicle body | ||
| Caution Function | with voice and photoelectric alarm functions | ||
| Fork tip protection | collision switch | ||
| Movement Capability | Navigation Mode | DM code | SLAM + DM code Dual Navigation |
| Maximum Speed (Empty Load/Full Load)(m/s) | 2.0/1.5 | ||
| Rated Acceleration(m/s²) | 1 | ||
| Stop Accuracy | ±5mm /±1° | ±20mm /±2° | |
| Movement Mode | two-wheel differential | ||
| Ground Adaptation Gap Slope Step | 40mm(Gap)/4°(7%)(Slope)/15mm(step) | ||
| Maximum Slope when the Fork Extension reach to the Maximum | 2° | ||
| Lithium Battery Performance | Battery Lite | The times of full charging: 1500 times(The battery capacity is guaranted to be more than 70% of the new battery) | |
| Battery Endurance/Charging Time | ≥8H/≤2H | ||
| Battery Type | LFP | ||
| Environment | Operating temperature() | 0~45 | |
| Pallet Requirement | The Width of w1 and W2 (mm) | W1≤190,700≤W2≤970 | |
| Pallet Length (mm) | ≤1400 | ≤1300 | |
| Vertical Entry Clearance(mm) | 95-130 | ||
| Project | Specifications | E10 (Titan) | E10-SLAM (Titan) |
| Basic Parameters | Size(mm) | 1233x1102x170 (Include the protection strip) | 1399x1102x170 (SLAM component can be elevated) |
| Maximum Lifting Weight (kg) | Rated 1200KG, Max 1500KG | ||
| Self-Weight (kg) | 310 | 320 | |
| Fork Height (mm) | 90(7mm downward floating height with loading) | ||
| Fork Stretch Out Max Limit (mm) | 1400 | ||
| Maximum Lifting Height (mm) | ≤330 | ||
| Display Screen | 5 inches | ||
| Telecommunication Modes | Default WIFI version: Support dual-band 2.4G/5G, IEEE802.11b/g/n (-5G version support 5G communication) | ||
| Safety Protection | Obstacle Avoidance Protection | Front double laser sensors + Rear double laser sensors | |
| Detection Distance of Front Laser(m) | 0-3 | ||
| Mechanical Protection | Emergency stop button, Reset button, A protection strip around the whole vehicle body | ||
| Caution Function | With voice and photoelectric alarm functions | ||
| Fork tip protection | Photoelectric sensor detection distance≤100mm, collision switch | ||
| Movement Capability | Navigation Mode | DM code | SLAM + DM code Dual Navigation |
| Maximum Speed (Full Load/Empty Lood)(m/s) | 1.5/1.2 | ||
| Rated Acceleration(m/s²) | 1 | ||
| Stop Accuracy | ±5mm /±1° | ±10mm /±2° | |
| Movement Mode | Dual-wheel differential | ||
| Ground Adaptation Gap Slope Step | 40mm(Gap)/4°(7%)(Slope)/15mm(Step) | ||
| Maximum Slope when the Fork Extension reach to the Maximum | 2° | ||
| Lithium Battery Performance | Battery Life | The times of fully charging: 1500 times (The battery capacity is guaranted to be more than 70% of the new battery) | |
| Battery Endurance/Charging Time | ≥6H/≤1.5H | ||
| Battery Typo | LFP | ||
| Environment | Operating temperature() | 0~45 | |
| Pallet Requirement | The Width of W1 and W2 (mm) | W1≤190. 700≤W2≤950 | |
| Pallet Length (mm) | ≤1400 | ≤1300 | |
| Pallet Opening Height (mm) | 120-130 | ||
