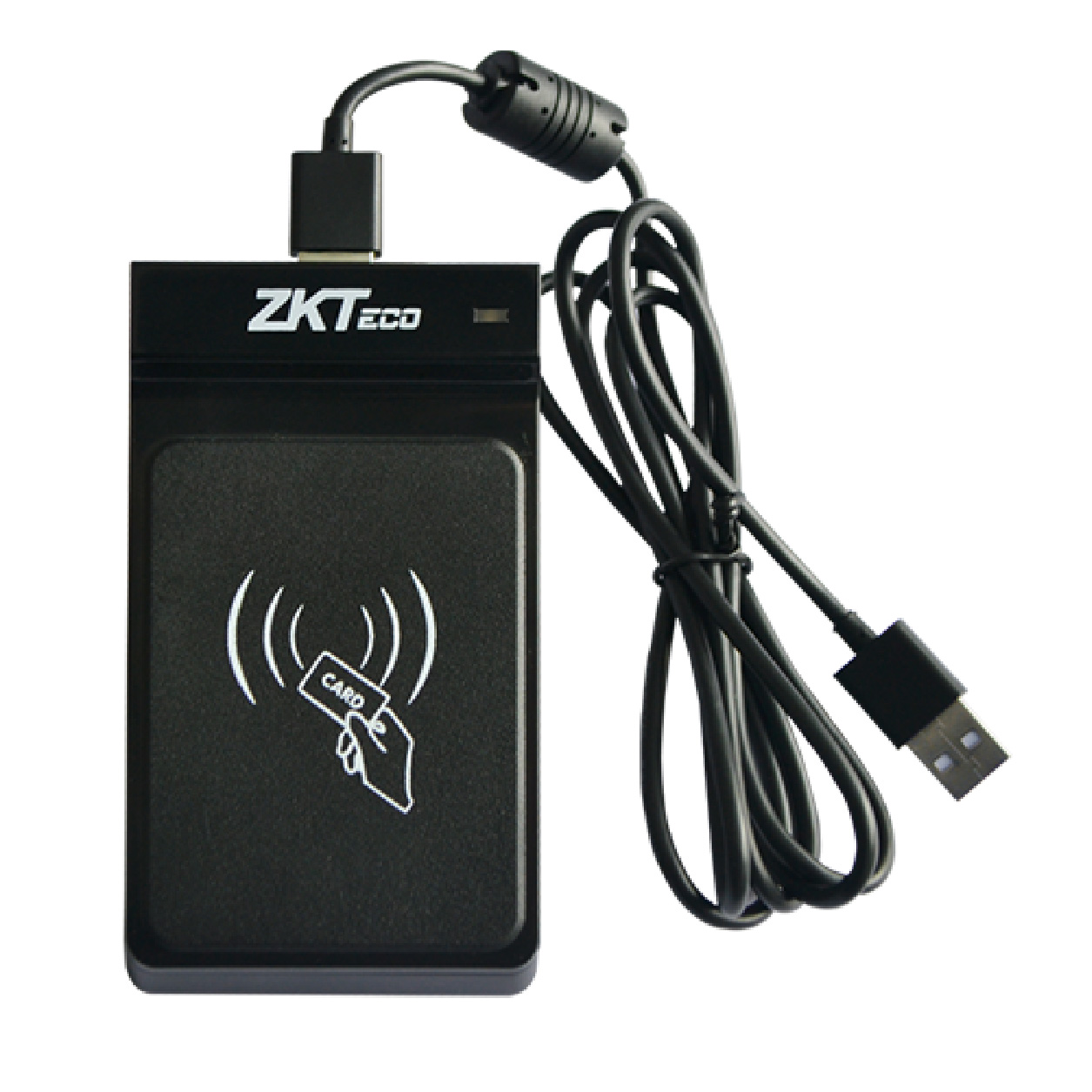

ZKTeco CR20 Series Mifare USB Reader

ZKTeco CR20 Series Mifare USB Reader

EM/Mifare USB Reader. CR20 Series are accessories designed to read (CR20E/M) & write (CR20M/W) proximity cards. They are connected to PC through USB Port (Plug & play). They allow high speed transactions and incorporate LED indicators. CR20M/W includes communication protocol for development and it’s compatible with S.O Windows 32 bits. CR20E and CR20M are compatible with windows S.O and read the same serial number as ZKTeco devices. Models: CR20E; CR20M; CR20M/W.

Models

• CR20E
• CR20M
• CR20M/W

Product Features :

• Read Range : KRxxx-M: Up to 5CM, KRxxx-E: Up to 10CM
• Reading Time : ≤200ms
• Input Port : External Buzzer Control, External LED Control
• Operating Temperature : -20°C - 65°C(-10° - +70°C)
• Supported Panel : InBio460, InBio160, InBio260
• Power/Current : DC 6-14V / Max.70mA
• Operating Humidity : 10% to 90% relative humidity, non-condensing
• Output Format : RS485
• Material : ABS+PC with texture
• Beeper : Yes
• LED : Red and Green LEDs
• Index Protection : KR100M-RS:IP65

Datasheet : ZKTeco CR20 Series Mifare USB Reader
